SHIELDING EFFECTIVENESS TESTS AGAINST ELECTROMAGNETIC FIELDS

Emctest Technologies is an emc laboratory that performs several tests such as shielding effectiveness test on site, directly at the customer, in Italy and in Europe, or in its headquarter in Rimini - Italy.

The tests are performed for all sectors:

  • private
  • industrial
  • automotive
  • medical
  • nautical
  • scientifical
  • governmental
  • aviation
  • railway
  • military

The Shielding Effectiveness Test verifies the attenuation capacity of material's electromagnetic field.

"Shielding Effectiveness" is defined as the level difference in dB between the RF energy coupled with and without the shield in place, therefore, measuring the RF shielding effectiveness of the Device Under Test (DUT).

The electromagnetic shielding (EM) of a material has the purpose of protecting the assemblages composed of electrical and electronic components from external EM fields that could create interference, with the possibility of causing damages and faults of different kinds up to irreparably compromising their functioning.

The goal is to verify the shielding from the produced electromagnetic fields avoiding interference or malfunctions caused by external devices. The required shielding effectiveness level is not unique and is defined by the EM field level which inhibits the performance of each device. Furthermore, shielding against electromagnetic fields is often necessary to limit EM radiation based on different standards reported below.

Shielding effectiveness tests are more important every day and widely requested in recent years following the continuous development of technological progress, especially in the field of telephony, radio frequency repeaters, and the design of equipment with increasingly sophisticated electrical circuits, electricity production and its use, and transportation in general.

Initially these tests were applied only in certain military areas in order to evaluate the shielding of reserved environments, today the field of application has been extended and does not concern only security and information protection needs but also safeguard for the human health (electrosmog).

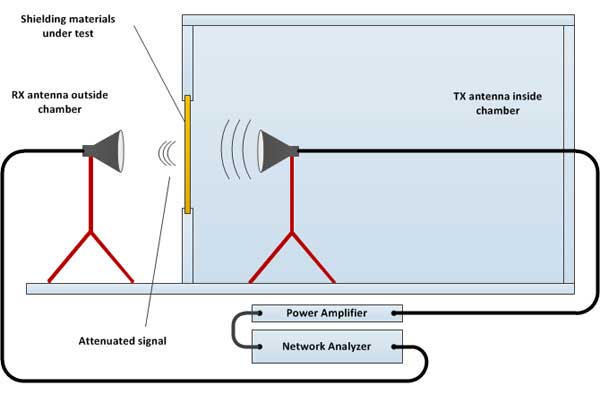

shielding effectiveness test example with 2 antennas
GENERAL APPLICATION FIELDS
Textile
  • Fabrics used to protect premises against electromagnetic fields
  • Realization of card holders
  • Jackets pockets
  • Shirts
  • Bags
  • Suitcases to protect RFID cards

Construction
  • Shielding panels and sheets for the construction of shielded structures such as shelters, screened rooms, reserved rooms, medical rooms, etc.

Glasses
  • Glasses to be applied to screens for small equipment
  • Glasses for the construction of shielding windows for buildings or internal dividing walls.

Applicable solutions
  • Spray
  • Shielding paints

Other shielding solutions
  • Not mentioned above

Oversize Products
  • Oversize Products
  • Aircrafts
  • Ships
  • Freighters
  • Trucks
  • Cars
  • Military Shelter
  • Container
  • Electrical cabinets / Enclosures

Constructions
  • Entire buildings
  • Rooms
  • Reserved places
  • Government premises
  • Medical facilities
  • Shielded chambers
  • Anechoic chambers

Glass Windows
  • Shielded glasses
  • Equipment screens

Applicable solutions
  • Spray for industrial use
  • Military shielding paints

Other shielding solutions
  • Not mentioned above

shielding effectiveness graph
CONTACT US
For information regarding the shielding effectiveness test, or to get a quote, you can contact us by phone or write us an email.
  • Opening time: 9am to 6pm (UTC/GMT +01:00)
E-mail: info@emctest.it   |     Phone: +39 0541 728562
Or simply fill in the contact form below:
